Outdoor P10 Full Color Module LED Display Electronic Advertising Large Screen Engineering Board
Features of the rental LED screen:
1. pixel particles is the use of well-known brands in China, the use of gold wire package connection, showing clear color, long life.
2. high power 5V LED dedicated power supply, energy saving, high conversion efficiency, can work in the high temperature environment.
3. receiving control card is a well-known Chinese product, high gray, high refresh rate, video high-definition display realistic. With the LED rental screen to send video processor.
4. aluminum metal box, enough thickness, can be permanently used is not easy to deformation, the box unit size can be customized.
5. Movable pallet and mounting brackets can be customized on demand.
Description
| Product mode:P5-8S | Module resolution:64dots |
| Module size:320*160mm | Maximum power consumption:50W |
| Physical point spacing:5mm | Module thickness:17.05mm |
| Light point color:1R1G1B | Module weight:0.5KG |
| LEDPackage:SMD2727/ 2525 | Drive mode: constant current drive |
Details
1. Modular design for quick installation and removal;
2. Highly reliable data hot backup, avoiding any communication risks during the exhibition;
3. High refresh rate up to 4200Hz, no flashing live video;
4. Super brightness and color uniformity, pixel calibration before leaving the factory;
5. Horizontal/vertical viewing angle up to 120° uniform HD display, no color cast, no color spots, no color blocks.
Application

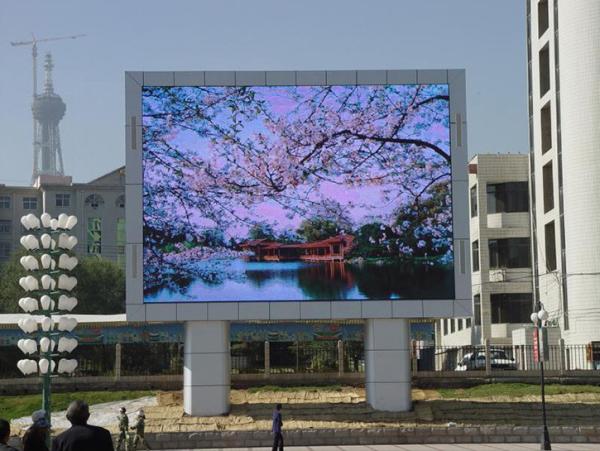

Full color screens are widely used in government and enterprise projects, exhibitions, cultural tourism, commercial real estate, outdoor advertising media and other fields. For example: supermarkets, restaurants, travel agencies, commercial plazas, cinemas, Clubhouses, schools, hotels, hospitals, communities, commercial buildings, subway stations, airports, etc.
In short, many places need LED screens for various purposes, we just do our best to meet Trends and needs.
Specification (parameter):
| Shenzhen jingcaiyuan electronic technology co. LTD |
| OUTDOOR P5 SMD 3IN1 TECHNICAL PARAMETERS |
Unit Module | Item | Parameter |
| | Model Number | P5-8S |
| | Module size | 3200mm*160mm |
| | Pixel pitch | 5mm |
| | Pixels Density | 40000 dots/m2 |
| | Pixel configuration | 1R1G1B |
| | LED Package mode | SMD2727 SMD2525 |
| | Pixel resolution | 64dots(W)*32dots(H) |
| | Max Power | 50W |
| | Module thickness | 17.05mm |
| | Weight | 0.5kg |
| | Drive type | Constant drive |
| | Scan mode | 1/8scan |
| | Port type | HUB75 |
| | Brightness of white balance | ≥6500cd/m2 |
| LED Cabinet | Dimension | 640mm*640mm |
| | Monomer Module Number | 8pcs |
| | Power supply | 5V/60A*2 pcs |
| | Thermal discharge | fan 1pcs |
| | Pixel per cabinet | 128mm*128mm |
| | Best viewing distance | 5M～100M |
| | Best viewing angle | 160°(W) 120°(H) |
| | Temperature | storage:-35℃～+85℃ |
| | | working:-20℃～+50℃ |
| | Relative humidity | 10%-95% |
| | Thickness | 85mm |
| Power | Working voltage | AC220V±10% |
| | Average Power consumption | <390W/㎡ |
| | Max.Power consumption | <980W/㎡ |
| | Current | <20mA(single LED) |
Control system | CPU | Pentium4 or above P4 |
| | Operation system | XP/WIN7 |
| | Control method | Synchronization |
Main technical parameter | Driving device | Constant drive IC |
| | Refresh frequency | >1920HZ |
| | Grey scale/colors | 16384gray level/16.7M colors |
| | | 16384gray level/16.7M colors |
| | MTBF | >9000hours |
| | Power switch | Automatic switch |
| | Display Mode | ≥800*600/1024*768 |
Competitive advantages:
- Installation service, usually we are not responsible for overseas installation, but we can
- Provide technical support for you. If you need to install the service, we can send us
- Technicians come to your country, but the cost is paid by the customer.
- Free lifetime maintenance and software upgrades.
- If you have any questions about the led display, we will reply you within 24 hours.
- Provide maintenance instructions and problem resolution within 48 hours.
- Provide customers with loaders so they can be used immediately after installation
- Led display, no need to debug
- Free technical training on how to use and process software.
